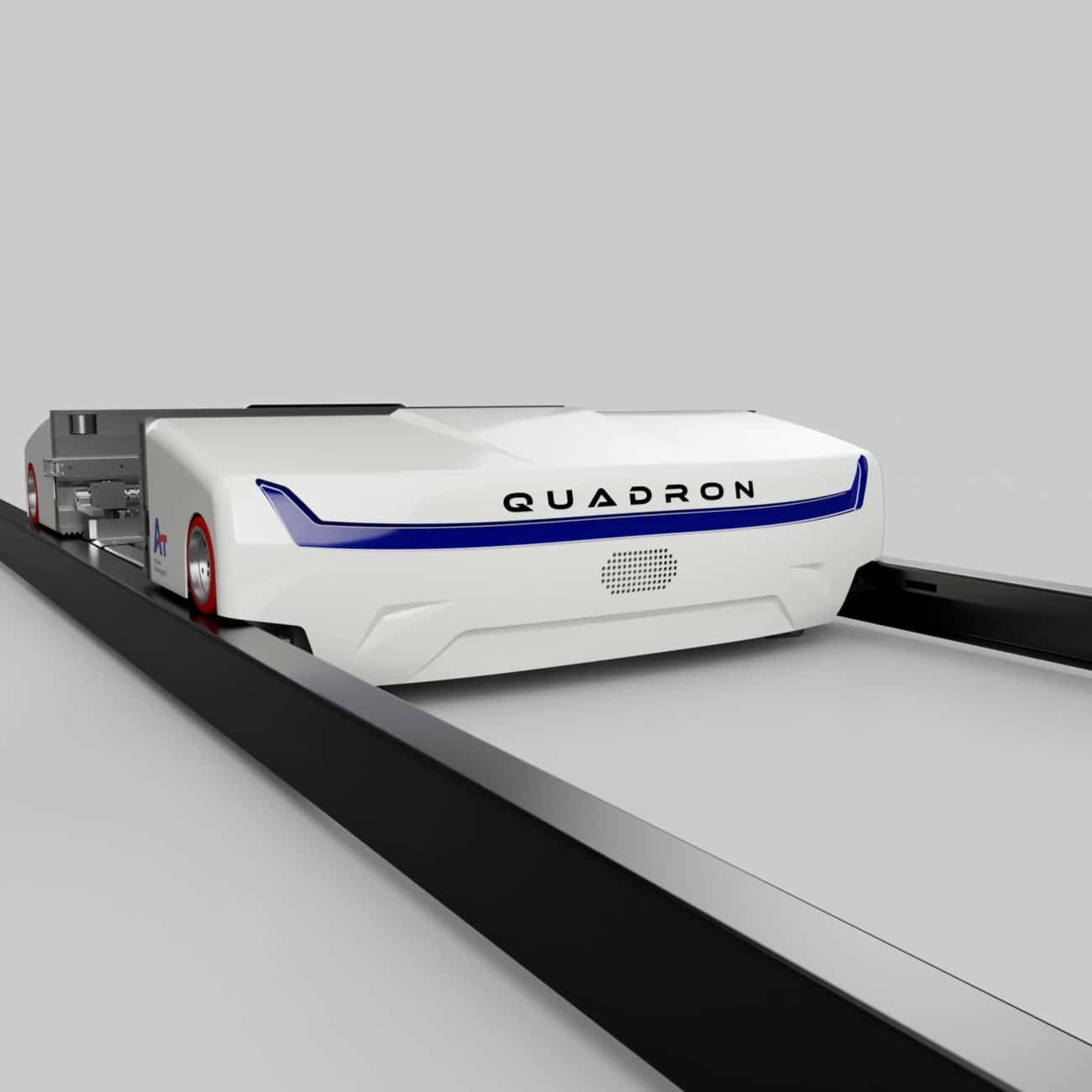

Quadron

Our carton shuttle robot, swiftly enables accelerated picking, order sequencing, and order fulfillment, driving the storage efficiency through the ceiling

Speed & Performance

  • Payload Capacity:30 Kg
  • Loaded/Empty Speed:3 m/s
  • Placing Cycle time for double-deep: 10-12 sec
  • Retrieval Cycle time for a double deep:8-10 sec
  • Position Accuracy:+/- 3 mm through barcode/positioning sensors

Physical attributes

  • Shuttle Dimensions:1242 mm x 900 mm x 305.2 mm
  • Extension: 1342 mm
  • Carton Dimensions (LxW):600 mm x 400 mm
  • Shuttle Colour: White & Blue
